High Pressure PTFE Hose With One braided Layer Of Stainless Steel For Transportation and Mobile Hydraulics

Brand Name : PASSIONCOHOSE

Model Number : 101

Certification : ISO9001:2015, RoHS, FDA, TS 16949

Place of Origin : CHINA

MOQ : 100 meters

Price : Negociation

Payment Terms : L/C, T/T

Supply Ability : 10,000 meters in one week

Delivery Time : 5-30 days

Packaging Details : Roll, Reel, Carton, Pallet, Wooden Case

Material 1 : Imported PTFE

Material 2 : Stainless Steel 304/316

Temperature : -65℃ to + 260℃

Transfer Medium : High temp oil, high temp water, steam, strong acid. strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.

Cover Color : Red, black, blue, grey, white, green, yellow, clear-red, clear-blue, clear-black, clear purple, clear-green

Outer Cover : Polyester, Aramid fiber, glass fiber, Nylon, Silicone, PVC, PU, EPDM

Contact Now

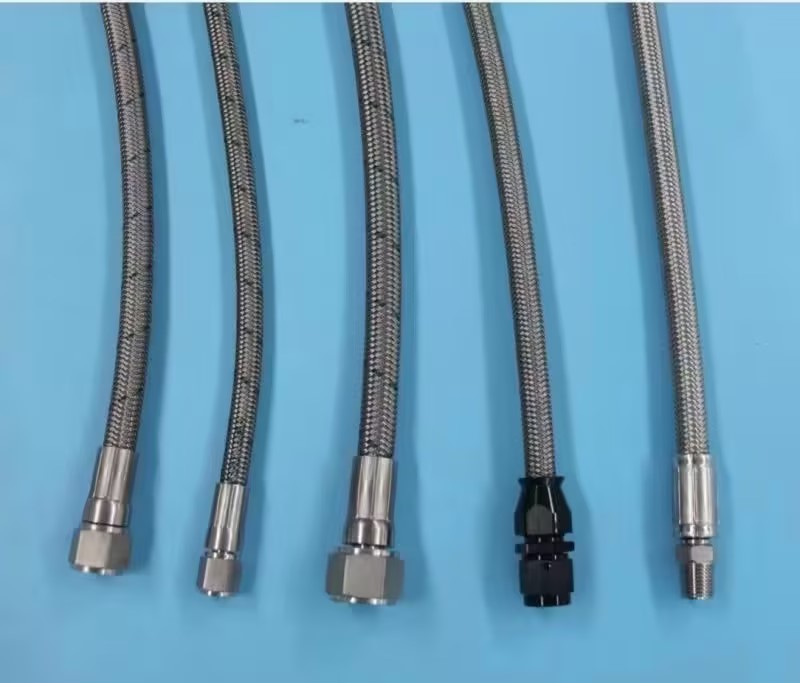

High Pressure PTFE Braided Hose

PTFE has unique chemical resistance and an anti-adhesive surface. This reduces the risks of building up deposits. Hose assemblies can be cleaned easily. Due to the large temperature range from -65℃ to + 260℃, PTFE is suitable for a lot of applications.
High Pressure PTFE Hose With One braided Layer Of Stainless Steel For Transportation and Mobile Hydraulics
Product Features:
• Smooth PTFE inner core
• One braided layer of stainless steel
• Two-piece crimp fittings
Applications:
Industrial Hydraulics and Pneumatics
• Transfer of hot and/or aggressive media e.g. thermo oil lines or supply lines for hot glue
• Transfer lines in hot environment e.g. in calendaring machines, dryers or injection molding machines
Transportation and Mobile Hydraulics
• Transfer of hot and/or aggressive media e.g. compressor discharge lines or coolant lines
• Transfer lines in hot environment e.g. supply lines close to the engine
Fluid Transfer and Handling
• Transfer of hot and/or aggressive media e.g. chemical transfer lines or steam lines
• Transfer of ultra pure media e.g. instrumentation lines for laboratories and testing
High Pressure PTFE Hose With One braided Layer Of Stainless Steel For Transportation and Mobile Hydraulics
High Pressure PTFE Hose With One braided Layer Of Stainless Steel For Transportation and Mobile Hydraulics
Specification:
I.DO.D.W.T.W.P.B.P.MIN. B. R.
inchmminchmminchmmpsibarpsibarinchmm
3/16"50.3318.40.0330.8537702601508010400.70918
1/4"6.50.394100.0330.853262.5225130509000.95724.3
5/16"80.46111.70.0330.852827.5195113107800.95724.3
3/8"100.53113.50.0330.852537.5175101507001.16929.7
13/32"10.30.551140.0330.85246517098606801.6341.4
1/2"130.66516.90.03912102.514584105802.33959.4
5/8"160.787200.0391188513075405205.315135
3/4"190.92123.40.0471.2145010058004008.008203.4
7/8"22.21.04326.50.0471.21087.57543503008.681220.5
1"25.41.16129.50.0591.5101570406028010.63270
